Seamlessly Convert HDMI to Professional SDI with Blackmagic Design Mini Converter - HDMI to SDI 6G

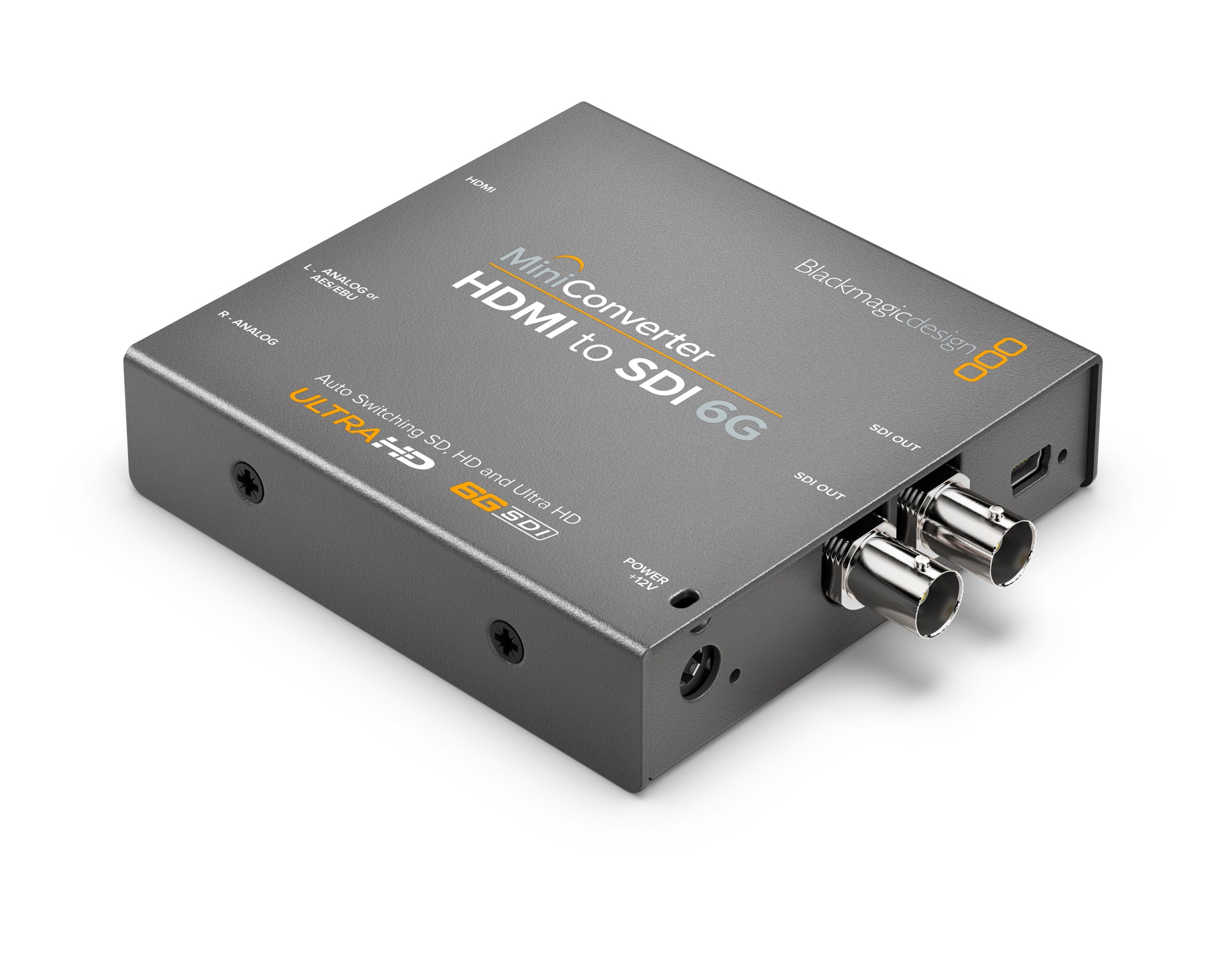

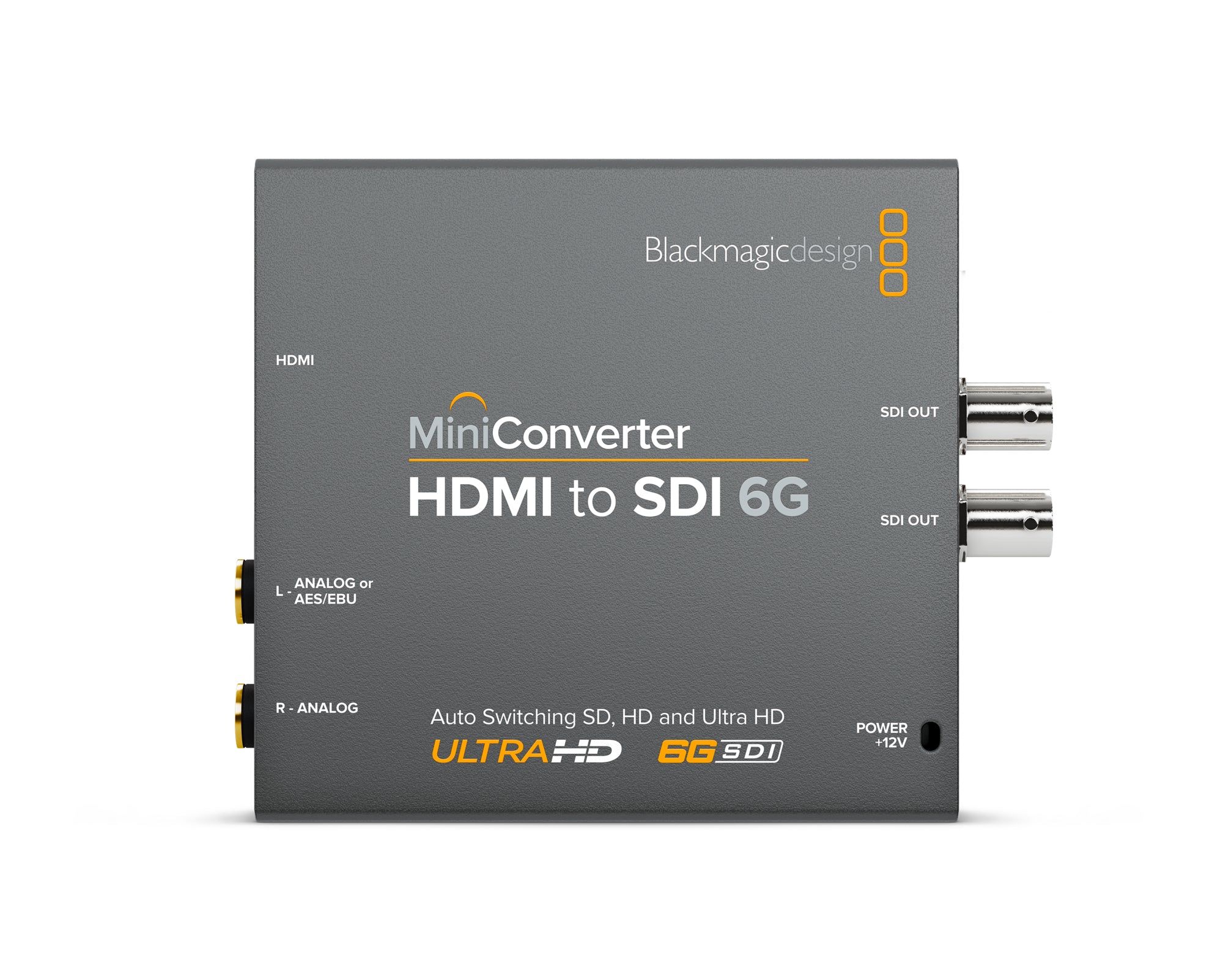

The Blackmagic Design Mini Converter - HDMI to SDI 6G is a powerful and compact solution designed for seamlessly converting HDMI signals from consumer devices, such as cameras and computers, to professional SDI video equipment. It supports a broad range of video formats, including SD, HD, Ultra HD up to UHD 4K at 30p, and DCI 4K at 24p, making it an ideal choice for integrating HDMI devices into professional broadcast workflows. This converter features automatic input detection, ensuring seamless operation by recognizing incoming HDMI signals and switching formats accordingly. With dual redundant SDI outputs, it provides enhanced reliability, while its support for 3D LUTs allows for custom color grading.
The inclusion of multiple audio options, such as embedded HDMI audio, AES/EBU, and balanced analog audio, further enhances its versatility. Compact and lightweight, the Mini Converter is designed for ease of use in various environments, making it a perfect tool for professional video production needs.
More Details:
- Compact and Portable: Designed with a miniaturized form factor, it is easy to carry and use in any setting, making it ideal for on-the-go professionals.
- Broad Format Compatibility: Supports SD, HD, Ultra HD, and DCI 4K formats, providing flexibility for various applications and future-proofing your setup.
- 6G-SDI Technology: Offers high bandwidth for compatibility with higher resolution formats, ensuring your equipment stays up-to-date with industry standards.
- Automatic Input Detection: Automatically detects the incoming HDMI signal and switches formats seamlessly, enhancing workflow efficiency.
- Dual SDI Outputs: Provides redundant SDI outputs for added reliability, ensuring consistent performance during critical operations.
- Multiple Audio Options: Embeds SDI audio from HDMI, AES/EBU, or balanced analog audio inputs, catering to diverse audio setup requirements.
- 3D LUT Support: Allows for the application of custom color looks for on-set monitoring or creative video effects, improving the visual quality of your production.
- HDMI Instant Lock: Ensures immediate video display when an HDMI input is connected, minimizing downtime and enhancing productivity.
Applications:
- Broadcast Integration: Seamlessly connect consumer HDMI devices to professional SDI broadcast equipment for live television production.
- Post-Production Workflows: Convert HDMI output from editing systems to SDI for compatibility with professional monitors and recording devices.
- Live Event Streaming: Integrate HDMI cameras and other sources into SDI-based streaming setups for concerts, conferences, and other live events.
- On-Set Monitoring: Use with HDMI cameras to provide real-time SDI video feeds to on-set monitors for immediate viewing and quality control.
- Video Conferencing: Enhance video conferencing systems by converting HDMI inputs from computers and cameras to SDI for better signal integrity and distribution.
- Surveillance Systems: Convert HDMI outputs from security cameras to SDI for integration with professional-grade surveillance monitoring and recording equipment.
- Educational and Corporate Training: Connect consumer-grade HDMI devices to SDI systems for high-quality video distribution in training environments.
- Medical Imaging: Convert HDMI signals from medical imaging devices to SDI for improved video quality and integration with professional display systems in healthcare facilities.
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output

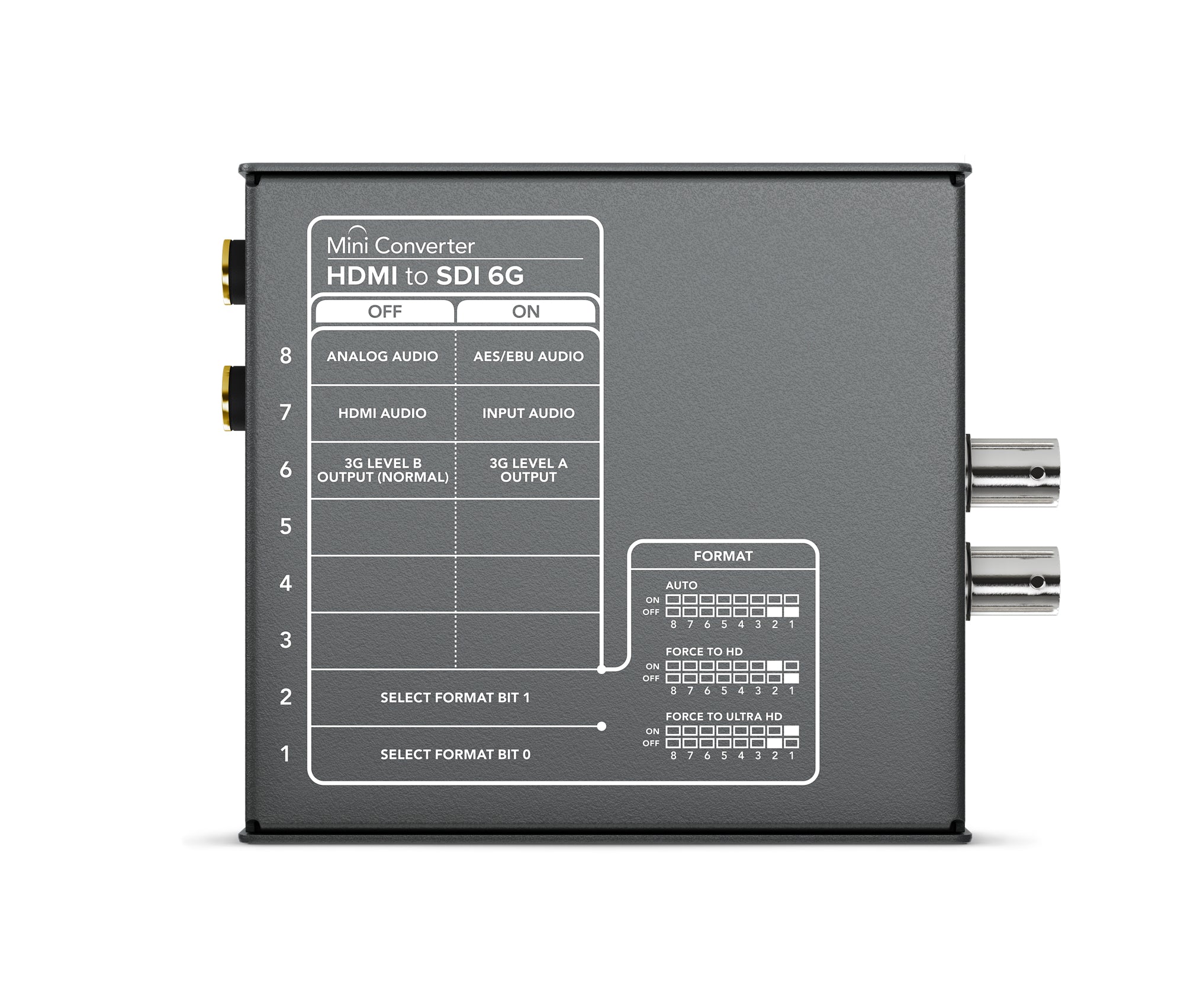

- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- Video Inputs: 1x HDMI Type A
- Video Outputs: 2x 6G-SDI
- Multi-Rate Support: Auto detection of SD, HD, 3G-SDI, or 6G-SDI signals
- Audio Inputs: Analog: 2 channels with 1x 1/4" TRS jack per channel, AES/EBU: 4 channels with 1x 1/4" TRS jack
- Audio Outputs: Embedded SDI audio
- Power Requirements: 10 to 18V DC (power supply included)
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Dimensions: 108 x 33 x 24.5 mm (4.3 x 1.3 x 1.0 in)
- Weight: 250g (0.55 lbs)
- Blackmagic Design HDMI to SDI 6G Mini Converter
- 12V Power Supply with International Socket Adapters
- Limited 3-Year Warranty
What video formats are supported by the Blackmagic Design Mini Converter - HDMI to SDI 6G?
The converter supports a wide range of video formats including SD, HD, Ultra HD up to UHD 4K at 30p, and DCI 4K at 24p.
Does the converter support audio input and output?
Yes, it supports embedded HDMI audio, AES/EBU, and balanced analog audio inputs, and outputs embedded SDI audio.
How many SDI outputs does the converter provide?
The Blackmagic Design Mini Converter - HDMI to SDI 6G provides two redundant SDI outputs for added reliability.
Can the converter be used in a live broadcast environment?
Yes, the converter is ideal for live broadcast environments as it can seamlessly integrate HDMI devices into professional SDI workflows.
Is the converter portable?
Yes, its compact and lightweight design makes it easy to carry and use in various environments, making it ideal for on-the-go professionals.
Does the converter support custom color grading?
Yes, it supports 3D LUTs, allowing you to apply custom color looks for on-set monitoring or creative video effects.
What are the power requirements for the converter?
The converter requires 10 to 18V DC, and a power supply is included with the device.
What is the operating temperature range of the converter?
The converter operates in temperatures ranging from 0° to 40° C (32° to 104° F).
Is the Blackmagic Design Mini Converter compatible with all major operating systems?
Yes, the converter is compatible with all major operating systems, ensuring versatile use across different platforms.
Does the converter feature automatic input detection?
Yes, the converter automatically detects the incoming HDMI signal and switches formats for seamless operation.
