Seamlessly Integrate Audio with SDI Using the Blackmagic Design Mini Converter
The Blackmagic Design Mini Converter - Audio to SDI seamlessly integrates audio from various sources into your SDI video setup, making it an essential tool for broadcast, AV professionals, and post-production environments. This compact unit supports both SD and HD formats up to 1080p60 and features dual audio inputs—balanced analog and AES/EBU digital—offering versatile connectivity options. With its redundant SDI input, the converter ensures continuous signal reliability by automatically switching to a secondary input if the primary fails.
Additionally, its straightforward configuration via DIP switches and status LEDs simplifies setup, making it both user-friendly and highly functional for all your audio embedding needs.
More Details:
- Compact and Versatile: Easily fits into any broadcast or post-production environment thanks to its small footprint.
- Wide Compatibility: Works with SD and HD video formats up to 1080p60, ensuring seamless integration with existing equipment.
- Flexible Audio Inputs: Equipped with both balanced analog and AES/EBU digital audio inputs, allowing connections to a variety of audio sources.
- Reliable Performance: Features a redundant SDI input for automatic failover, ensuring continuous operation without signal loss.

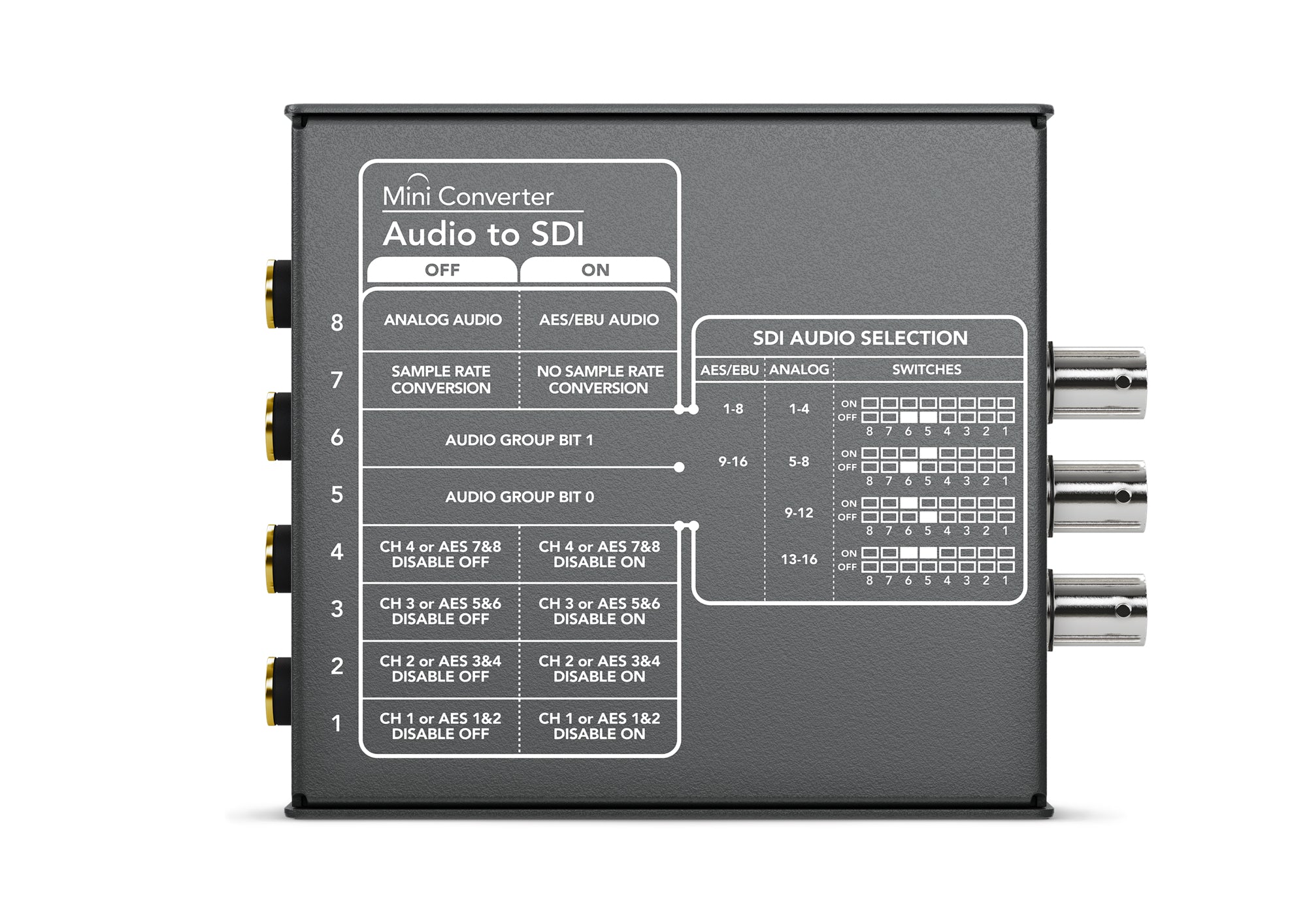

- User-Friendly Design: Simple setup with DIP switches for configuration and clear LED status indicators for hassle-free operation.
Applications:
- Broadcast Studios: Embed audio into SDI feeds for live broadcast, ensuring high-quality sound integration with video.
- Live Events: Use in live event production to merge audio from microphones or mixing consoles with video signals, streamlining production setups.
- Video Conferencing: Enhance video conferencing setups by integrating high-quality audio sources with SDI video streams.
- Post-Production: Apply in post-production environments to synchronize audio tracks with video clips during editing processes.
- AV Installations: Ideal for complex audiovisual setups in educational, corporate, or entertainment settings where audio needs to be embedded into video feeds.
- Up to 1080p SDI Signals for Embed Audio
- Four 1/4" Audio Input Jacks
- 4 Channels of Analog Audio
- 8 Channels of AES/EBU Audio
- Redundant SDI Backup Input
- Video Standards: SD-SDI, HD-SDI (up to 1080p60)
- Audio Standards: Analog: 24-bit, Digital: AES/EBU
- Audio Inputs: 2x Balanced Analog (1/4-inch jacks), 2x AES/EBU (XLR connectors)
- Audio Outputs: Embedded SDI, 2x Balanced Analog (1/4-inch jacks), 2x AES/EBU (XLR connectors)
- SDI Input: 1x BNC (switchable between 3G/HD/SD)
- SDI Output: 1x BNC (SDI with embedded audio)
- SDI Loop Output: 1x BNC (reclocked)
- Power: 12V DC
- Power Consumption: 8.4W
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 45°C (-4°F to 113°F)
- Dimensions: 108 x 55 x 25.4 mm (4.3 x 2.2 x 1.0 in)
- Weight: 250g (0.55 lbs)
What audio standards does the Mini Converter support?
The converter supports Analog audio at 24-bit and digital AES/EBU standards.
Can the Mini Converter handle HD video formats?
Yes, it supports SD and HD video formats up to 1080p60, ensuring compatibility with a wide range of video equipment.
What types of audio inputs are available on this converter?
The Mini Converter includes two types of audio inputs: 2x balanced analog (1/4-inch jacks) and 2x AES/EBU (XLR connectors).
Is there a failover mechanism for the SDI input?
Yes, the converter features a redundant SDI input that automatically switches to a secondary input if the primary input loses signal, enhancing reliability.
How is the Mini Converter powered?
The device is powered by a 12V DC input, with a typical power consumption of 8.4W.
What are the physical dimensions of the Mini Converter?
The converter measures 108 x 55 x 25.4 mm (4.3 x 2.2 x 1.0 inches) and weighs 250g (0.55 lbs).
Can the settings on the Mini Converter be controlled remotely?
Yes, settings can be adjusted via DIP switches or software, allowing for easy configuration and advanced control.
