Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Pro: Streamline Your Live Productions

The Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher simplifies the complexities of live streaming with its robust, user-friendly interface suitable for streamers, gamers, and professionals organizing corporate or educational events. This compact device supports seamless switching between up to four HDMI inputs and integrates a direct streaming function to popular platforms such as YouTube Live, Facebook Live, and Twitch. It enhances live productions with professional features like transitions, picture-in-picture effects through DVE, and green screen chroma key capabilities.

Additionally, the ATEM Mini Pro allows users to monitor all camera feeds, audio meters, and outputs on a single screen, while the Fairlight audio mixer ensures top-notch sound quality with EQ, compressors, and limiters for each channel. With the ability to record directly to USB drives in H.264 format while streaming, this switcher is an all-in-one solution for producing high-quality live content.

More Details:

5 Models to choose from:

• Blackmagic Design ATEM Mini (discontinued) - The ATEM Mini Switcher is an affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more!
• Blackmagic Design ATEM Mini Pro - The ATEM Mini Pro Switcher is a powerful live ATEM video switcher with 4 HDMI inputs, hardware streaming, recording to USB disks, USB webcam out, audio mixer, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and more!
• Blackmagic Design ATEM Mini Pro ISO - The ATEM Mini Pro ISO Switcher has the features of ATEM Mini Pro plus 5 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.
• Blackmagic Design ATEM Mini Extreme - The ATEM Mini Extreme Switcher is a true professional model that adds a total of 8 HDMI inputs, 16 way multiview, 4 ATEM Advanced Chroma keyers, SuperSource with 4 extra DVEs, 2 HDMI outputs, 2 USB ports, and a more powerful control panel.
• Blackmagic Design ATEM Mini Extreme ISO - When you buy the ATEM Mini you get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

Discover the Essential Features of the Blackmagic Design ATEM Mini Pro

• 2-Channel Digital Audio Mixer per Source
• 4-Channel Live Stream HDMI Switcher
• Control up to Four BMPCC 6K/4K Cameras
• Live Tally, Stream, and Record Status
• Color and Pattern Generators
• DVE Transition, Chroma/Luma Keyers
• Media Player, Computer Input Support
• Upstream and Downstream Keyers
• HDMI Output, Ethernet ATEM Control

Delve into the Detailed Specifications of the Blackmagic Design ATEM Mini Pro

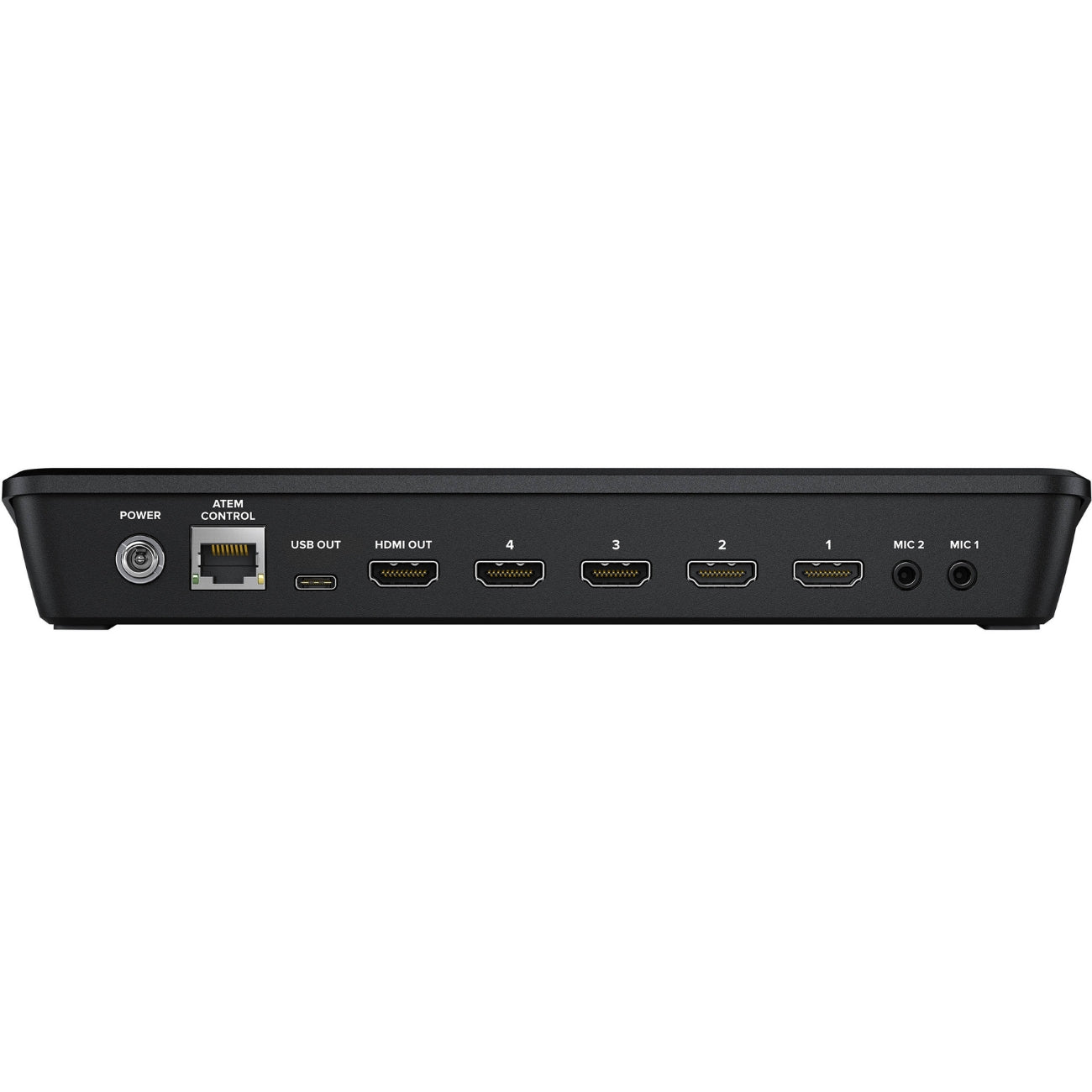

Connections

• Total Video Inputs: 4
• Total Outputs: 2
• Total Aux Outputs: 1
• Total Audio Inputs: 2 x 3.5mm stereo mini jack
• Total Audio Outputs: None, embedded audio only.
• Timecode Connection: None
• HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable, 2-channel embedded audio.
• Video Input Re-Sync: On all 4 HDMI inputs
• Frame Rate and Format Converters: On all 4 HDMI inputs
• HDMI Program Outputs: 1
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.
• Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection

Standards

• HD Video Input Standards: 720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz
  1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz
• Colorspace Conversion: Hardware based real-time

Product Specifics

• Upstream Keyers: 1
• Downstream Keyers: 1
• Advanced Chroma Keyers: 1
• Linear/Luma Keyers: 2
• Transition Keyer: DVE only
• Total Number of Layers: 5
• Pattern Generators: 1
• Color Generators: 2
• DVE with Borders and Drop Shadow: 1
• Interface: Minimum monitor resolution of 1366 x 768

Audio

• Audio Mixer:
• 6 input x 2 channel mixer
• Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
• Level and Peak Metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug-In Power: Available on both 3.5mm mini jack connections

Recording

• Direct Recording Video and Audio:1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Physical Specifications

What's Included in the Blackmagic Design ATEM Mini Pro

• Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
• 12V Power Supply with International Adapters
• Limited Warranty

Frequently Asked Questions about Blackmagic Design ATEM Mini Pro

Can I connect external microphones to the ATEM Mini HDMI Live Stream Switcher?

A: Yes, the ATEM Mini supports the connection of external microphones, allowing you to enhance the audio quality of your live streams.

Does the ATEM Mini HDMI Live Stream Switcher support picture-in-picture functionality?

A: Absolutely! The ATEM Mini offers picture-in-picture functionality, enabling you to display multiple video sources simultaneously on your live stream.

Can I use the ATEM Mini for gaming live streams?

A: Yes, the ATEM Mini is an excellent choice for gaming live streams. You can easily switch between different gaming consoles or capture cards to provide your audience with an immersive gaming experience.

Is the ATEM Mini compatible with popular live streaming platforms?

A: Yes, you can seamlessly stream your content from the ATEM Mini to popular platforms such as YouTube, Facebook Live, Twitch, and more.

Does the ATEM Mini support green screen (chroma key) functionality?

A: Yes, the ATEM Mini has built-in chroma key functionality, allowing you to remove the background and replace it with custom virtual backgrounds or graphics.

Can I use the ATEM Mini for professional live events and conferences?

A: Definitely! The ATEM Mini's professional live production tools, multi-camera switching capabilities, and audio mixing features make it an excellent choice for professional events, conferences, and presentations.

Does the ATEM Mini require any additional software to operate?

A: The ATEM Mini can be controlled and monitored using the ATEM Software Control application for Mac and Windows. It provides a user-friendly interface to manage all the settings and features of the switcher.

Can I use the ATEM Mini with both Mac and Windows computers?

A: Yes, the ATEM Mini is compatible with both Mac and Windows computers, allowing you to integrate it seamlessly into your preferred workflow.

Can I use the ATEM Mini for pre-recorded videos or post-production purposes?

A: While the ATEM Mini is primarily designed for live streaming, you can certainly utilize it for pre-recorded videos or post-production by connecting it to compatible recording devices or professional live streaming software.

Have more questions? Feel free to contact us for further assistance!
