Overview:

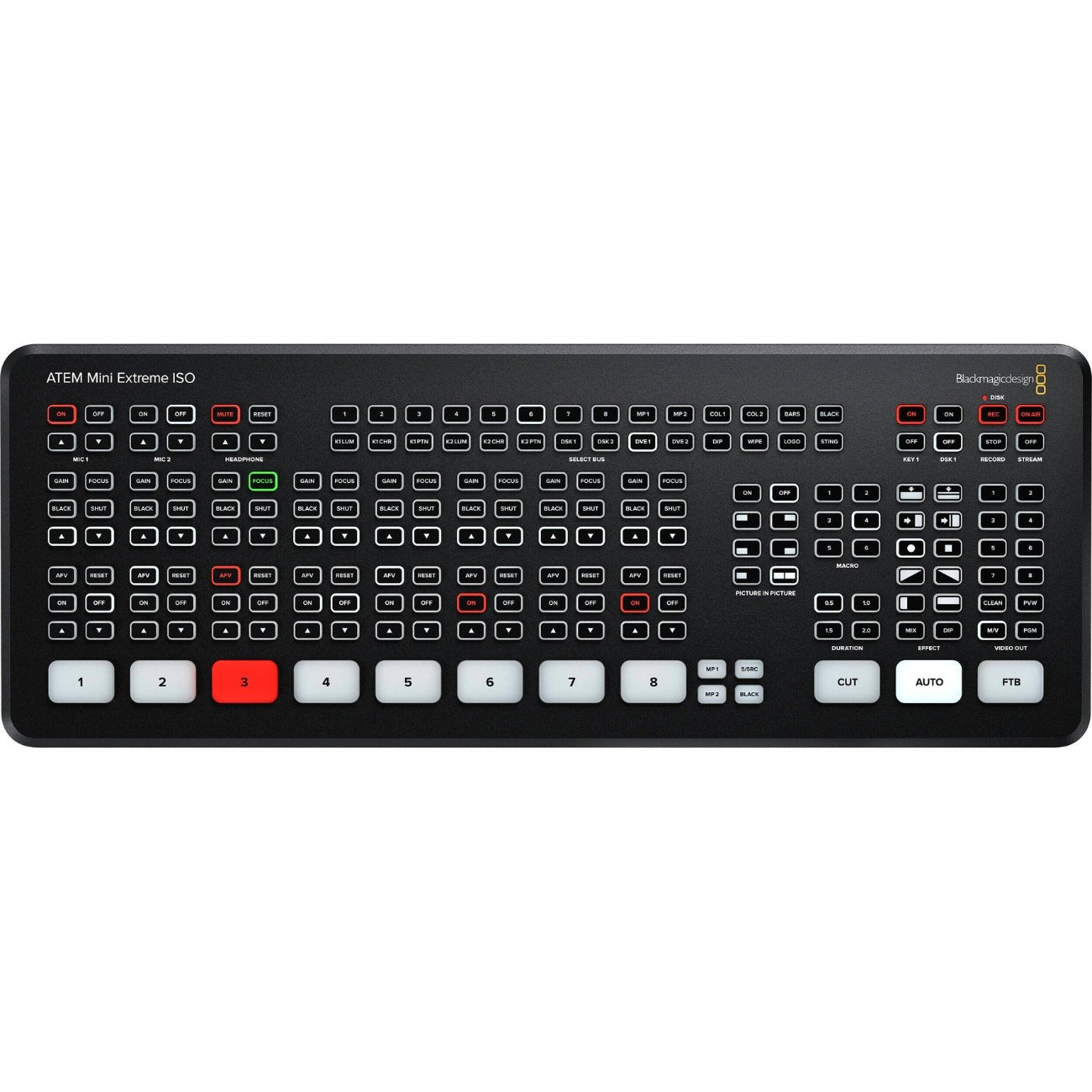

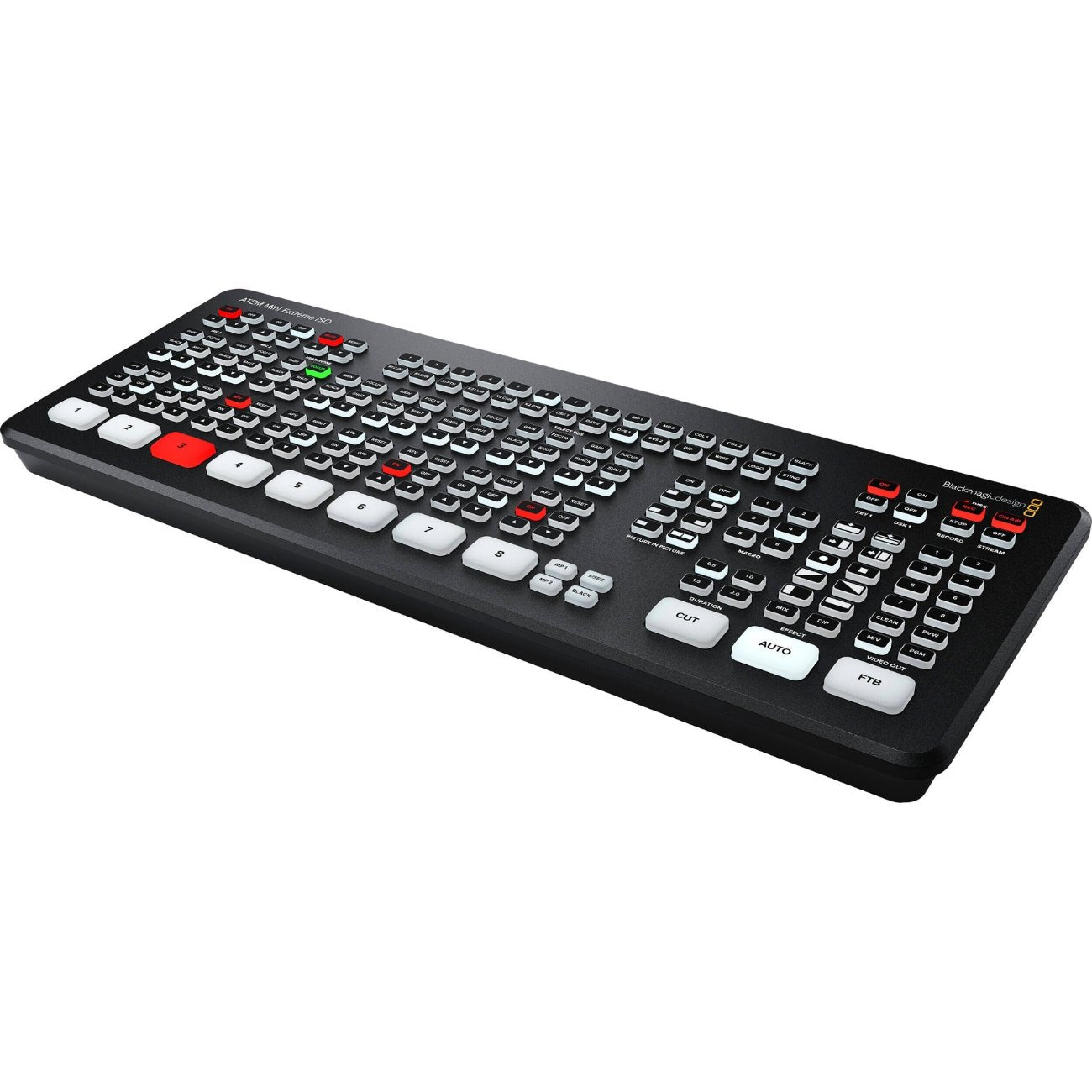

A powerful and versatile tool for your live streaming needs, the Blackmagic Design ATEM Mini Extreme ISO HDMI Live Stream Switcher is an 8-input live production switcher with an integrated control panel and advanced broadcast features. This switcher includes all the features of Blackmagic ATEM Mini Extreme, plus it records 9 separate H.264 video streams in real-time, allowing capture of all 8 clean feed inputs and the program video. It boasts four HDMI inputs, allowing you to connect multiple cameras and sources for dynamic and professional production and a control panel that offers effortless control and navigation, making it user-friendly for both beginners and seasoned streamers.

The exceptional Blackmagic ATEM Mini Extreme ISO enables you to stream high-definition video directly to the internet via Ethernet output, ensuring a smooth and reliable live streaming experience. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB-C ports. Plus, it records not only the program stream and inputs but also captures embedded audio and analog audio inputs. A generated DaVinci Resolve project file is also saved allowing the project to be recreated and edited later, which opens up endless possibilities for post-production adjustments and enhancements.

5 Models to choose from:

• Blackmagic Design ATEM Mini (discontinued) - The ATEM Mini Switcher is an affordable Blackmagic live stream switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more!
• Blackmagic Design ATEM Mini Pro - The ATEM Mini Pro Switcher is a powerful Blackmagic ATEM video switcher with 4 HDMI inputs, hardware streaming, recording to USB disks, USB webcam out, audio mixer, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and more!
• Blackmagic Design ATEM Mini Pro ISO - The ATEM Mini Pro ISO Switcher has the features of ATEM Mini Pro plus 5 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.
• Blackmagic Design ATEM Mini Extreme - The ATEM Mini Extreme Switcher is a true professional Blackmagic HDMI switcher model that adds a total of 8 HDMI inputs, 16 way multiview, 4 ATEM Advanced Chroma keyers, SuperSource with 4 extra DVEs, 2 HDMI outputs, 2 USB ports, and a more powerful control panel.
• Blackmagic Design ATEM Mini Extreme ISO - When you buy the ATEM Mini you get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

The Pros of Using the Blackmagic Design ATEM Mini Extreme ISO HDMI Live Stream Switcher:

• Advanced ISO Recording - Capture individual video feeds from up to 9 sources simultaneously, allowing for seamless post-production editing and content customization.
• High-Quality Video Output - Enjoy exceptional video quality with support for up to 1080p resolution, ensuring that your live streams are sharp, clear, and visually impressive.
• Versatile Connectivity - Connect a wide range of HDMI sources, such as cameras, gaming consoles, and computers, for seamless integration and flexible streaming options.
• Easy-to-Use Controls - The intuitive interface and dedicated buttons make it simple to operate the Blackmagic switcher, even for users with minimal technical expertise.
• Professional Audio Mixing - Take advantage of the built-in audio mixer to achieve optimal sound quality and balance for a polished and immersive live stream.
• Multi-View Monitoring - Monitor multiple video sources in real-time on a single screen, ensuring efficient workflow management and precise control over your live stream.
• Powerful Switching Capabilities - Effortlessly switch between different video sources, including cameras, computers, and media players, to create dynamic and engaging live broadcasts.
• Live Stream Compatibility - The Blackmagic ATEM switcher is compatible with popular streaming platforms and software, allowing you to easily broadcast your content to a wide audience.
• Compact and Portable Design - The compact size and lightweight construction of the Blackmagic live switcher makes it ideal for on-the-go streaming setups and mobile productions.

Discover the Essential Features of the Blackmagic Design ATEM Mini Extreme ISO

• 4 x Upstream, 2 x Downstream Keyers
• 8-Channel HDMI Live Streaming Switcher
• 11-Input, 2-Channel Audio Mixer
• Supports up to 1080p60
• RTMP Streaming via Ethernet or USB-C
• Record Program Out and Individual Inputs
• Input Frame Rate and Format Converter
• HD Multiview Output with up to 16 Views

Delve into the Detailed Specifications of the Blackmagic Design ATEM Mini Extreme ISO

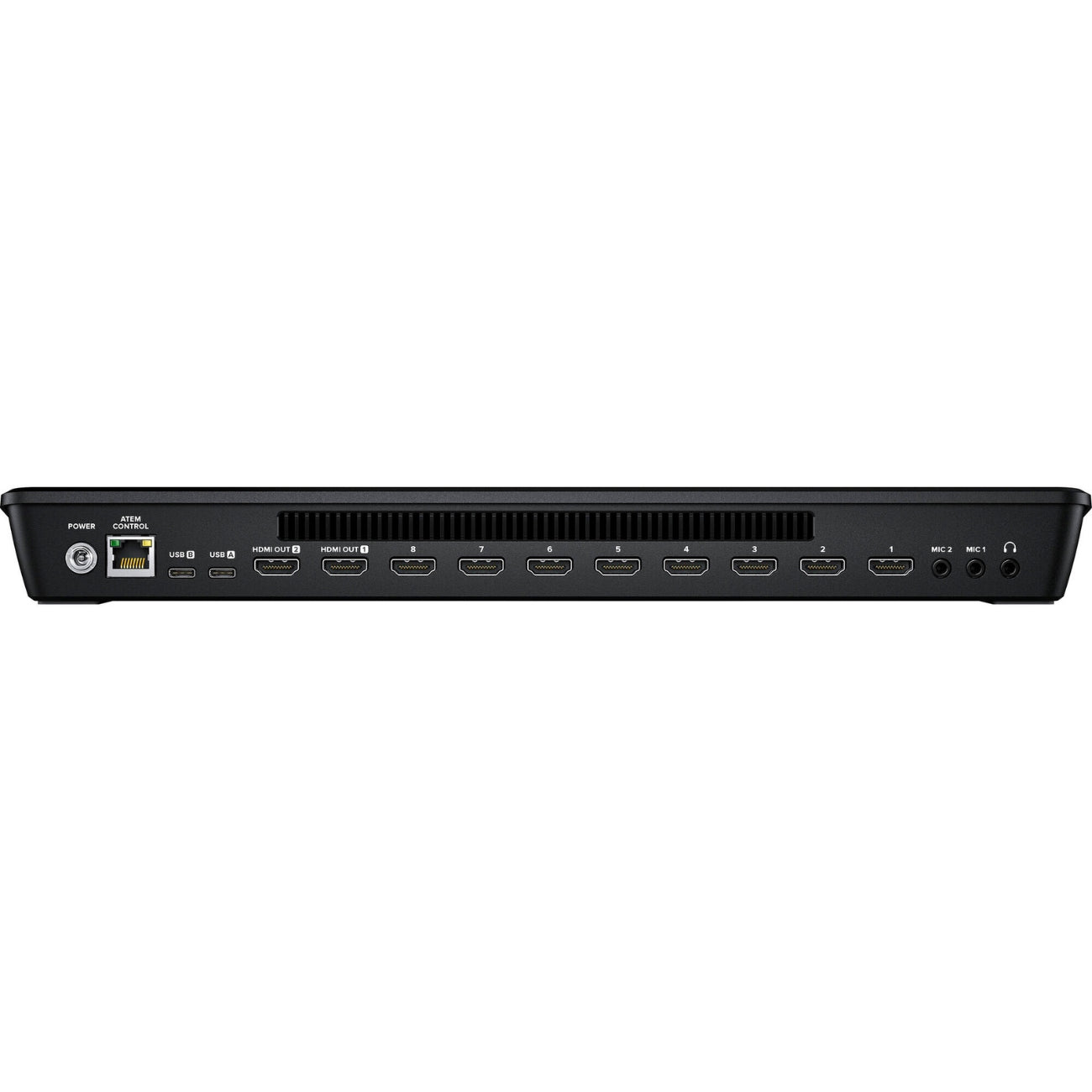

Connections

• Total Video Inputs: 8
• Total Outputs: 4
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5mm stereo mini jack
• Total Audio Outputs: 1 x 3.5mm stereo mini jack.
• Timecode Connection: None
• HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable, 2-channel embedded audio.
• Video Input Re-Sync: On all 8 HDMI inputs
• Frame Rate and Format Converters: On all 8 HDMI inputs
• HDMI Program Outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection

Standards

• HD Video Input Standards: 720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz
  1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz
• Colorspace Conversion: Hardware based real-time

Product Specifics

• Upstream Keyers: 4
• Downstream Keyers: 2
• Advanced Chroma Keyers: Up to 4
• Linear/Luma Keyers: Up to 4
• Transition Keyer: DVE only
• Total Number of Layers: 9
• Pattern Generators: 5
• Color Generators: 2
• DVE with Borders and Drop Shadow: 2
• Interface: Minimum monitor resolution of 1366 x 768

Audio

• Audio Mixer:
• 11 input x 2 channel mixer
• Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
• Level and Peak Metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug-In Power: Available on both 3.5mm mini jack connections

Recording

• Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
• Video Recording:
• 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio
• 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio
• Audio Recording: 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2-channel audio inputs and 8 x HDMI 2-channel embedded audio inputs
• Switching: Program switching recorded as a DaVinci Resolve project .drp file
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Physical Specifications

What's Included in the Blackmagic Design ATEM Mini Extreme ISO

• Blackmagic Design ATEM Mini Extreme ISO HDMI Live Stream Switcher
• 12 VDC Power Supply with International Plugs
• Limited Warranty

What is the Blackmagic Design ATEM Mini Extreme ISO?

The Blackmagic Design ATEM Mini Extreme ISO is an advanced 8-channel live production switcher designed for professional live streaming workflows, featuring ISO recording and extensive integration with DaVinci Resolve.

How many video inputs does the ATEM Mini Extreme ISO support?

The ATEM Mini Extreme ISO supports up to 8 HDMI video inputs, each capable of handling resolutions up to 1080p60.

Can I record individual video inputs with the ATEM Mini Extreme ISO?

Yes, the ATEM Mini Extreme ISO can record up to 9 separate H.264 video streams simultaneously, including all 8 clean feed inputs and the program output.

Does the ATEM Mini Extreme ISO integrate with DaVinci Resolve?

Yes, the ATEM Mini Extreme ISO automatically generates a DaVinci Resolve project file when recording, streamlining the post-production editing process.

What are the streaming capabilities of the ATEM Mini Extreme ISO?

The ATEM Mini Extreme ISO allows you to stream directly to platforms like YouTube Live, Facebook Live, and Twitch using its USB output as a webcam source or via Ethernet or USB-C connection.

What advanced features does the ATEM Mini Extreme ISO offer?

The ATEM Mini Extreme ISO includes 4 chroma keyers, 6 picture-in-picture DVEs, 2 media players, and a multiview with up to 16 views, making it highly versatile for complex productions.

How can I control the ATEM Mini Extreme ISO?

You can control the ATEM Mini Extreme ISO using its built-in control panel, the included software control panel, or an optional hardware control panel for remote operation.

What audio features are available on the ATEM Mini Extreme ISO?

The ATEM Mini Extreme ISO includes an 11-channel audio mixer, allowing you to mix audio from all connected sources, including two microphone inputs and stereo HDMI.

Does the ATEM Mini Extreme ISO support green screen chroma key?

Yes, the ATEM Mini Extreme ISO supports green screen chroma key, enabling you to remove green screens and composite graphics for virtual sets.

What are the power requirements for the ATEM Mini Extreme ISO?

The ATEM Mini Extreme ISO operates on 12V DC power.
