Blackmagic Design ATEM Mini Extreme HDMI Live Stream Switcher

Blackmagic Design ATEM Mini Extreme HDMI Live Stream Switcher

Overview:

An advanced switcher for true professionals, the Blackmagic Design ATEM Mini Extreme HDMI Live Stream Switcher offers unparalleled control and flexibility for producing high-quality live streams with its cutting-edge technology and comprehensive set of features. This Blackmagic switcher is an 8-input live production switcher for live streaming that features an integrated control panel and advanced broadcast features equipped with multiple HDMI inputs that allows seamless switching between various video sources, including cameras, computers, and media players. Its advanced features include built-in DVE (Digital Video Effects), chroma keying, and multi-view monitoring, enabling users to create visually captivating and dynamic live productions.

Whether you are a professional content creator, live streamer or event producer, the Blackmagic ATEM Mini Extreme HDMI live stream switcher empowers you to take your live productions to the next level. The robust construction, reliable performance, and rich feature set make the switcher an ideal choice for capturing and delivering captivating live streams with precision and professionalism. Plus, this ATEM extreme supports up to 1080p resolution, delivering crisp and vibrant video output, and also features live streaming capabilities allowing you to directly connect to popular streaming platforms and share your content with a global audience in real-time. A user-friendly interface is also offered that allows effortless control over video switching, transitions, and effects!

5 Models to choose from:

• Blackmagic Design ATEM Mini (discontinued) - The ATEM Mini Switcher is an affordable Blackmagic live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more!
• Blackmagic Design ATEM Mini Pro - The ATEM Mini Pro Switcher is a powerful live Blackmagic ATEM switcher with 4 HDMI inputs, hardware streaming, recording to USB disks, USB webcam out, audio mixer, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and more!
• Blackmagic Design ATEM Mini Pro ISO - The ATEM Mini Pro ISO Switcher has the features of ATEM Mini Pro plus 5 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.
• Blackmagic Design ATEM Mini Extreme - The ATEM Mini Extreme Switcher is a true professional model that adds a total of 8 HDMI inputs, 16 way multiview, 4 ATEM Advanced Chroma keyers, SuperSource with 4 extra DVEs, 2 HDMI outputs, 2 USB ports, and a more powerful control panel.
• Blackmagic Design ATEM Mini Extreme ISO - When you buy the ATEM Mini you get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

The Pros of Using the Blackmagic Design ATEM Mini Extreme HDMI Live Stream Switcher:

• High-Quality Video Output - Enjoy stunning video quality with support for up to 1080p resolution, ensuring your live streams are sharp, detailed, and aesthetically appealing.
• Seamless Live Switching - Effortlessly switch between multiple HDMI video sources, such as cameras, computers, and media players, to create professional-grade live productions.
• Multi-View Monitoring - Monitor all your video sources in real-time on a single screen, allowing for easy monitoring and control over your live stream production.
• Professional Audio Mixing - The built-in audio mixer enables precise control over audio levels, ensuring clear and balanced sound for a captivating streaming experience.
• Customizable Transitions and Effects - Add professional polish to your live streams with customizable transitions, graphics, and effects, creating a visually engaging presentation.
• Compact and Portable Design - The compact size of the ATEM HDMI switcher makes it ideal for on-the-go streaming setups and mobile productions.
• Easy-to-Use Interface - The user-friendly interface and intuitive controls make operating the Blackmagic Design ATEM switcher straightforward, even for those new to live streaming.
• Live Stream Compatibility - Seamlessly integrates the Blackmagic live stream switcher with popular streaming platforms and software, enabling you to reach a wide audience across various platforms.

Discover the Essential Features of the Blackmagic Design ATEM Mini Extreme

• 4 x Upstream, 2 x Downstream Keyers
• 8-Channel HDMI Live Streaming Switcher
• 11-Input, 2-Channel Audio Mixer
• RTMP Streaming via Ethernet or USB-C
• Record Program Out
• Input Frame Rate and Format Converter
• Re-Sync on All HDMI Inputs
• HD Multiview Output with up to 16 Views

Delve into the Detailed Specifications of the Blackmagic Design ATEM Mini Extreme

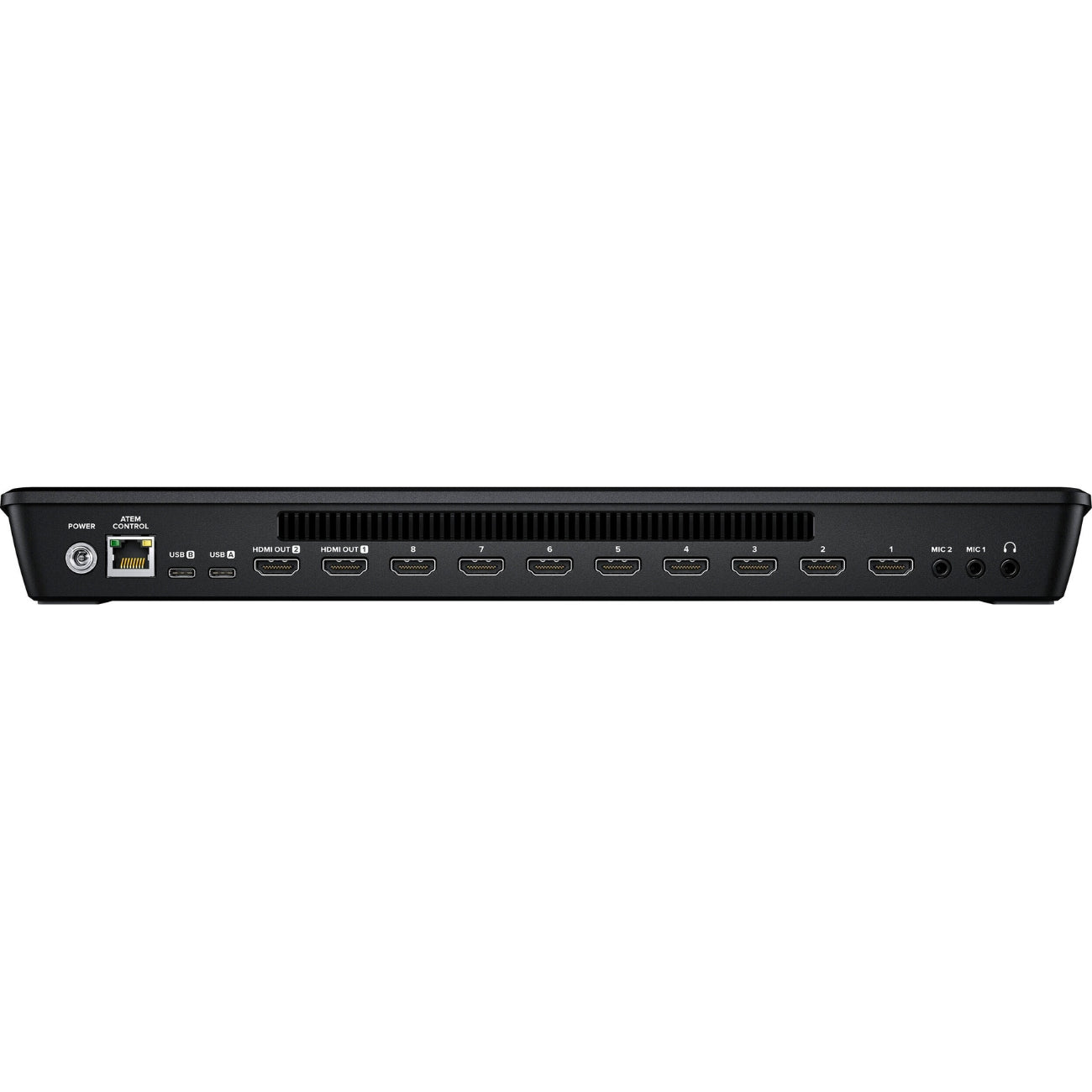

Connections

• Total Video Inputs: 8
• Total Outputs: 4
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5mm stereo mini jack
• Total Audio Outputs: 1 x 3.5mm stereo mini jack.
• Timecode Connection: None
• HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable, 2-channel embedded audio.
• Video Input Re-Sync: On all 8 HDMI inputs
• Frame Rate and Format Converters: On all 8 HDMI inputs
• HDMI Program Outputs: 2
• Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection.
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection.

Standards

• HD Video Input Standards: 720p50, 720p59.94, 720p60
  1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec 709
• HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz
  1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz
• Colorspace Conversion: Hardware based real-time

Product Specifics

• Upstream Keyers: 4
• Downstream Keyers: 2
• Advanced Chroma Keyers: Up to 4
• Linear/Luma Keyers: Up to 4
• Transition Keyer: DVE only
• Total Number of Layers: 9
• Pattern Generators: 5
• Color Generators: 2
• DVE with Borders and Drop Shadow: 2
• Interface: Minimum monitor resolution of 1366 x 768

Audio

• Audio Mixer:
• 11 input x 2 channel mixer
• Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
• Level and Peak Metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug-In Power: Available on both 3.5mm mini jack connections

Recording

• Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
• Video Recording: 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Physical Specifications

What's Included in the Blackmagic Design ATEM Mini Extreme

• Blackmagic Design ATEM Mini Extreme HDMI Live Stream Switcher
• 12 VDC Power Supply with International Plugs
• Limited Warranty

What is the maximum resolution supported by the ATEM Mini Extreme?

The ATEM Mini Extreme supports up to 1080p60 resolution on all HDMI inputs and outputs.

Can the ATEM Mini Extreme stream directly to YouTube and other platforms?

Yes, the built-in hardware streaming engine allows direct streaming to platforms like YouTube Live, Facebook Live, and Twitch via Ethernet connection.

How many HDMI inputs does the ATEM Mini Extreme have?

The ATEM Mini Extreme is equipped with 8 independent HDMI inputs, allowing you to connect multiple cameras, consoles, and computers.

What is ISO recording, and does the ATEM Mini Extreme support it?

ISO recording allows you to record separate feeds of all inputs, program output, and audio channels. The ATEM Mini Extreme supports ISO recording of up to 5 separate streams.

Is it possible to use the ATEM Mini Extreme as a webcam?

Yes, you can connect the ATEM Mini Extreme directly to your computer via USB-C and use it as a high-quality webcam for streaming platforms.

Does the ATEM Mini Extreme have built-in audio mixing capabilities?

Yes, the ATEM Mini Extreme features a Fairlight audio mixer with EQ, compressor, and limiter for advanced audio control.

What control options are available for the ATEM Mini Extreme?

You can control the ATEM Mini Extreme remotely using the free ATEM Software Control application or use third-party control surfaces for a more broadcast-style workflow.

Can I monitor multiple video sources at once with the ATEM Mini Extreme?

Yes, the ATEM Mini Extreme has multiview capability, allowing you to view up to 16 video sources, audio meters, and program status on a single monitor.
