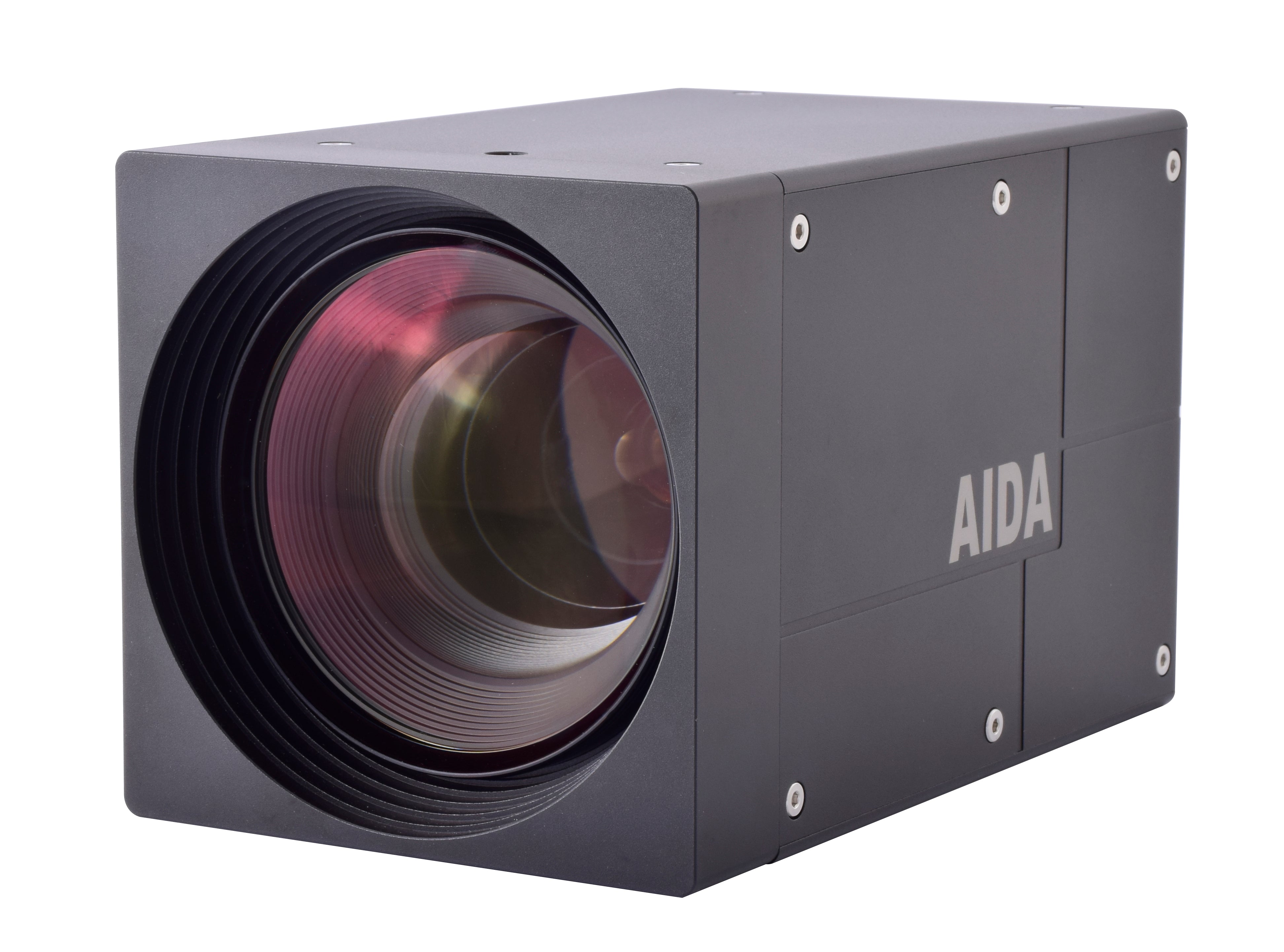

Introducing AIDA Imaging 4K/UHD 6G-SDI EFP Camera, a professional 4K EFP camera solution that houses a superior 12X 4K lens zoom module. Powered by a back-illuminated pixel technology, the UHD6G-X12L realizes true cinema quality 4K images with a wide dynamic range and enhanced imaging characteristics, i.e. sensitivity and greatly reduced noise under low light conditions.
The UHD6G-X12L is robust in its features with expanded control sets via VISCA protocol, audio, and dual video (6G-SDI & HDMI 1.4) output. Designed for versatility, durability, and cost-effectiveness for smooth integration into any broadcast, professional, or corporate AV environment.
- 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions.
- Power by a back-illuminated pixel technology.
- Superior 4K 12X optical zoom.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.
- OSD control breakout cable with audio input and RS-485 for remote communication.

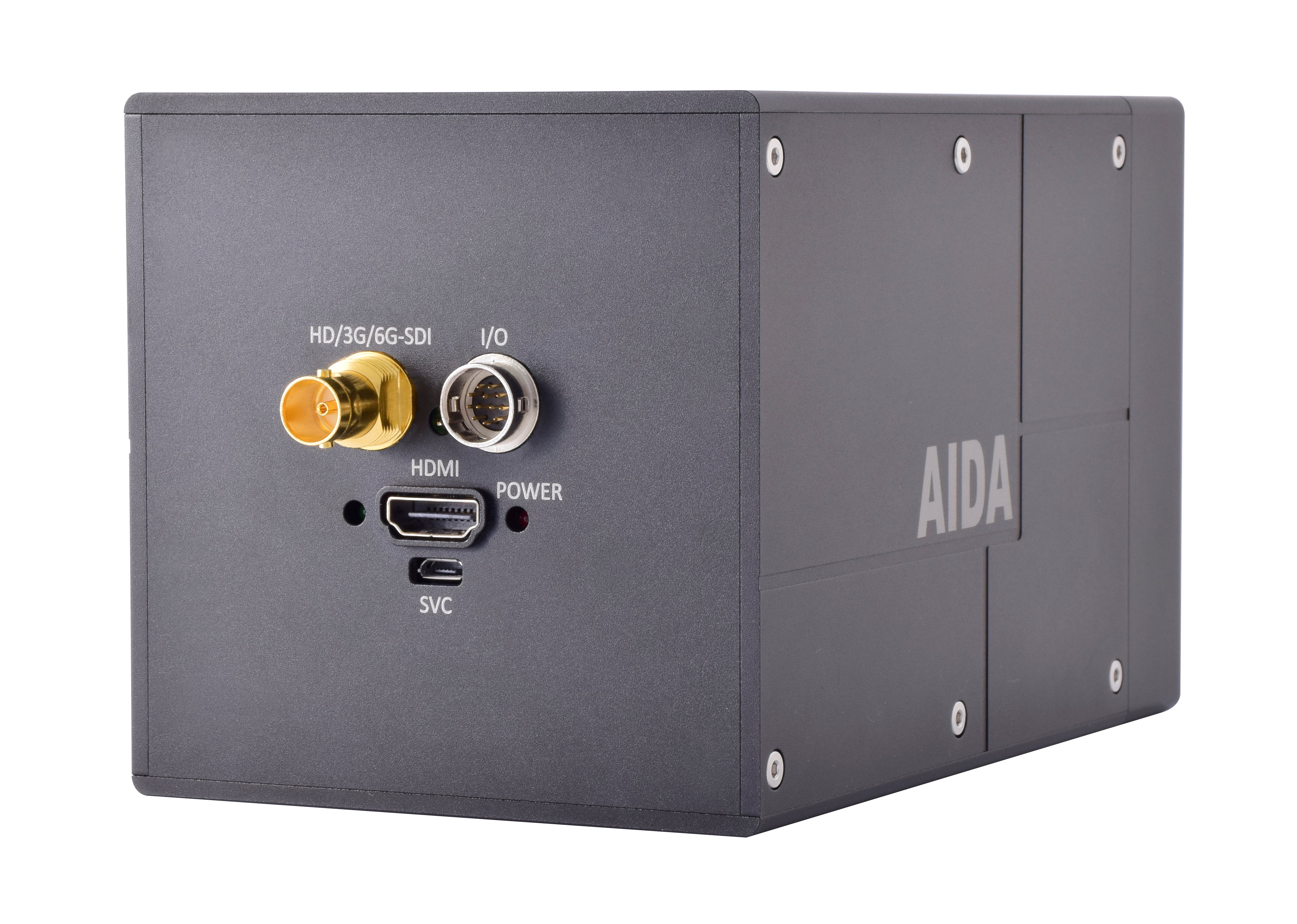

- Dual video simultaneous output interfaces 6G-SDI & HDMI.
- Flawlessly relays multi-channel embedded audio via 6G-SDI & HDMI.
- Perfectly suited for broadcast, pro audio/video, and security.
- Conforming with SMPTE 292M, 424M, and 2081-10.
- Versatile, compact, and rugged design.
Video
Image Sensor | 1/1.7" Progressive CMOS |
Sensor Size | Diagonal 9.93mm(17:9) |
Effective Pixels | Horizontal: 4096, Vertical: 2160 |
Pixel Size | 1.85 μm (H) x 1.85 μm (V) |
Resolution | 4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720 |
Resolution/Rate | 4K (4096 X 2160) 20/24p 2160 30p/29.97p 1080 60p/59.94p/50p/30p/29.97p/25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p |
Output | HDMI 1.4 HD/3G/6G-SDI (BNC) |
Color Space | 4:2:2 (YCbCr) 10bit |
Function
White Balance | AWB / AE / AF |
Exposure | Full Auto, Bright, Shutter Priority, Iris Priority, Manual |
Other | WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection |
Lens
Lens | 12X UHD Optical Zoom, 4.2 - 50.04mm, F1.8 (Wide) - F2.8 (Tele) |
Audio
Input | 3.5mm Stereo Mic-in & Line in over I/O Cable |
Sample Rate | 16/24/32 Bits |
Standard
SMPTE |
|
Physical
Camera Control | RS-485 OSD Button |
Operation Temp | 15°F - 120°F |
Dimension | 90.20mm x 90.20mm x 156.70mm / 3.55" x 3.55" x 156.70" |
Weight | 600g / 1.2lbs |
Power | 12VDC (+9 - +15VDC) |
- AIDA Imaging UHD6G-X12L 4K Professional EFP Camera
- I/O Breakout Cable
- 12 VDC Power Supply & Socket Adapter
- Terminal Power Connector
- Limited 1-Year Warranty
